Heraeus Replacement IR Lamps 09751765

Product Name:

Heraeus Replacement IR Lamps 09751765

400V 4200W Quartz Twin Tube IR Emitter Lamp Replacement

4200W Halogen Infrared Heating Lamp Replacement 09751765

Quick heating: 1~2 seconds fast response time.

Special reflectors: Gold reflector (90% reflective rate), White ceramic reflector (70% reflective rate).

Matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).

Higher density power output: The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Medium wave lamp is 60KW/M2.

Long working life: We can promise the working life of short wave and fast response medium wave lamp 5000hrs and medium wave lamp 8000hrs.

Specifications:

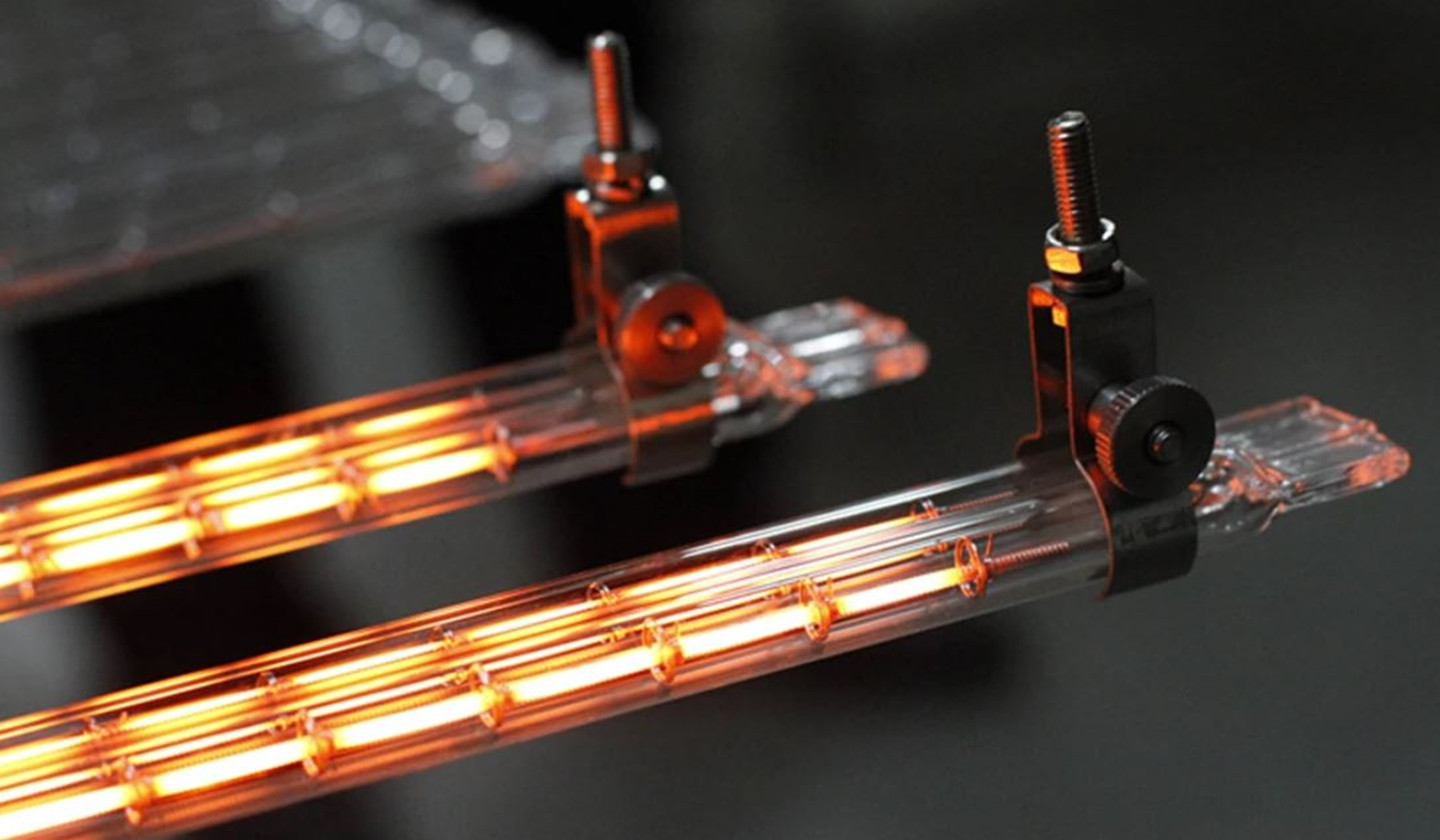

Twin Tube Infrared Heat Lamp
Total Length(mm)	Heated Length(mm)	Voltage(V)	Wattage(W)	Cross Section(mm)	Reflector	Connection Side	Burning Position	TYPE
125	60	115/230	600	23X11	GOLD	VERTICAL	ONE-SIDE	B
145	80	115/230	600	23X11	GOLD	VERTICAL	ONE-SIDE	B
145	80	115/230	1000	23X11	GOLD	VERTICAL	ONE-SIDE	B
200	130	230	1200	23X11	WHITE	HORIZONTAL	ONE-SIDE	B
250	180	240	1000	23X11	GOLD	HORIZONTAL	ONE-SIDE	B
350	270	240	1500	33X15	GOLD	HORIZONTAL	ONE-SIDE	B
400	320	230	2000	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
450	380	400	2200	23X11	NO	VERTICAL	TWO-SIDE	C
480	410	230	2000	33X15	GOLD	HORIZONTAL	ONE-SIDE	B
500	420	400	3000	23X11	WHITE	HORIZONTAL	TWO-SIDE	C
600	535	230	3000	23X11	GOLD	HORIZONTAL	ONE-SIDE	B
630	560	380	3600	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
660	580	400	4400	23X11	NO	HORIZONTAL	ONE-SIDE	B
700	630	220	3000	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
735	630	400	4600	33X15	GOLD	VERTICAL	TWO-SIDE	C
800	700	230	4000	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
900	800	400	6950	23X11	GOLD	HORIZONTAL	TWO-SIDE	L
1100	1000	400	3500	23X11	GOLD	HORIZONTAL	ONE-SIDE	A
1125	1020	400	6000	23X11	GOLD	HORIZONTAL	ONE-SIDE	B
1160	1080	400	6200	33X15	GOLD	HORIZONTAL	ONE-SIDE	B
1200	1100	240	5400	23X11	GOLD	HORIZONTAL	ONE-SIDE	G
1250	1150	400	3500	23X11	GOLD	HORIZONTAL	TWO-SIDE	D
1450	1350	400	8000	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
1700	1600	480	9000	23X11	GOLD	HORIZONTAL	TWO-SIDE	C
2200	2100	480	12800	33X15	WHITE	HORIZONTAL	TWO-SIDE	C
3100	3000	480	13000	33X15	GOLD	HORIZONTAL	TWO-SIDE	C

Alternative Models


Part no.	Volts	Watts	OAL	Type
09751720	400	3000	1100	A
09751713	115	600	145	B
09751751	230	1500	300	B
09751741	230	1200	405	B
09751740	400	3000	600	B
09751340	400	3000	600	B
09751761	230	3000	650	C
09751765	230	4200	850	C
09751760	400	6000	1150	C
09751731	400	7000	1450	C
09751780	400	6000	1450	D
09751783	400	5000	1850	D
09752439	230	500	400	B
09755167	230	1000	900	B
09755054	230	2000	900	B
09755255	230	2500	1100	B
09753187	230	3250	1420	B
09754585	230	3750	1600	B
09754863	400	4100	1800	B
09754783	400	4500	1920	B
09756083	400	5750	2400	B
09753874	230	6250	2600	B
09753923	400	2500	1300	C
09752912	400	4000	1700	B
09754619	400	5000	2120	B
09753874	400	6250	2600	B
09751473	400	4800	1150	B
09751471	400	4000	1150	B
09751474	400	9500	2250	C
09751472	400	4800	2715	A
09751475	400	9600	2750	C

Heidelberg
Machine	Alt part no.	Voltage	Wattage	TOL	Type
Speedmaster 74	M6.170.0301/01	400	6950	900	L
Speedmaster 74	SM74-FMW-B	480	4200	900	B
Speedmaster 52	G4.170.0101	415	3300	740	B
M Offset/ MO	53.170.1311	415	3300	740	B
Speedmaster 102	91.170.1311	415	3500	1100	A
Speedmaster 102	C7.170.0301/01	400	5400	1200	H
Speedmaster 102	91.170.1411	415	2500	1100	B
Speedmaster 102	SM102-FMW-B	480	6000	1125	B
Speedmaster 102	F7.170.0771	400	6200	1160	G
Speedmaster 72	83.170.1311	415	3500	800	B
Speedmaster 72	83.170.1411	415	1900	800	B
XL105	F7.170.0771.01	400	6200	1160	G
